Door Hinge YLS-074
Door Hinge YLS-074
Short Description:
Model No：YLS - 074
Material： Zinc Alloy
Finish： Matt Black / Matt White / Satin Black Nickel
Application: Wooden door, Wooden alumimum door For flush door with rebate or without rebate
Bearing capicity: 2 pieces/ 40kg, 3 pieces/60 kg
Product Size Type
YLS-074
Material: Zinc alloy
Finish: Matt Black, Matt White, Satin Black Nickel
Application: Wooden door, Wooden alumimum door For flush door with rebate or without rebate

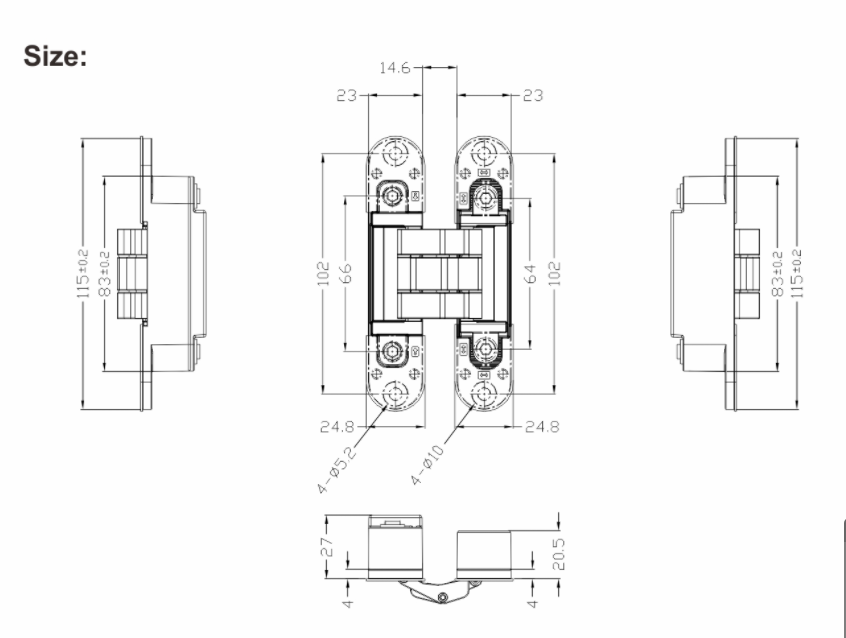

Dimension:
Loading capacity: 2 pieces/ 40kg, 3 pieces/60 kg
Max door width: 900mm
Max door height: 2100mm
Door thickness: 30-45mm
Opening degree: 180
Adjustment:
Vertical: ±2mm
Horizontal: ±2mm
Pressure: ±1mm

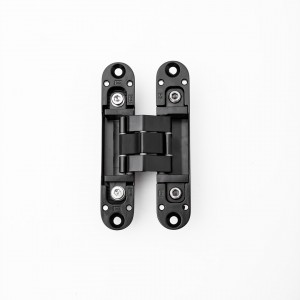

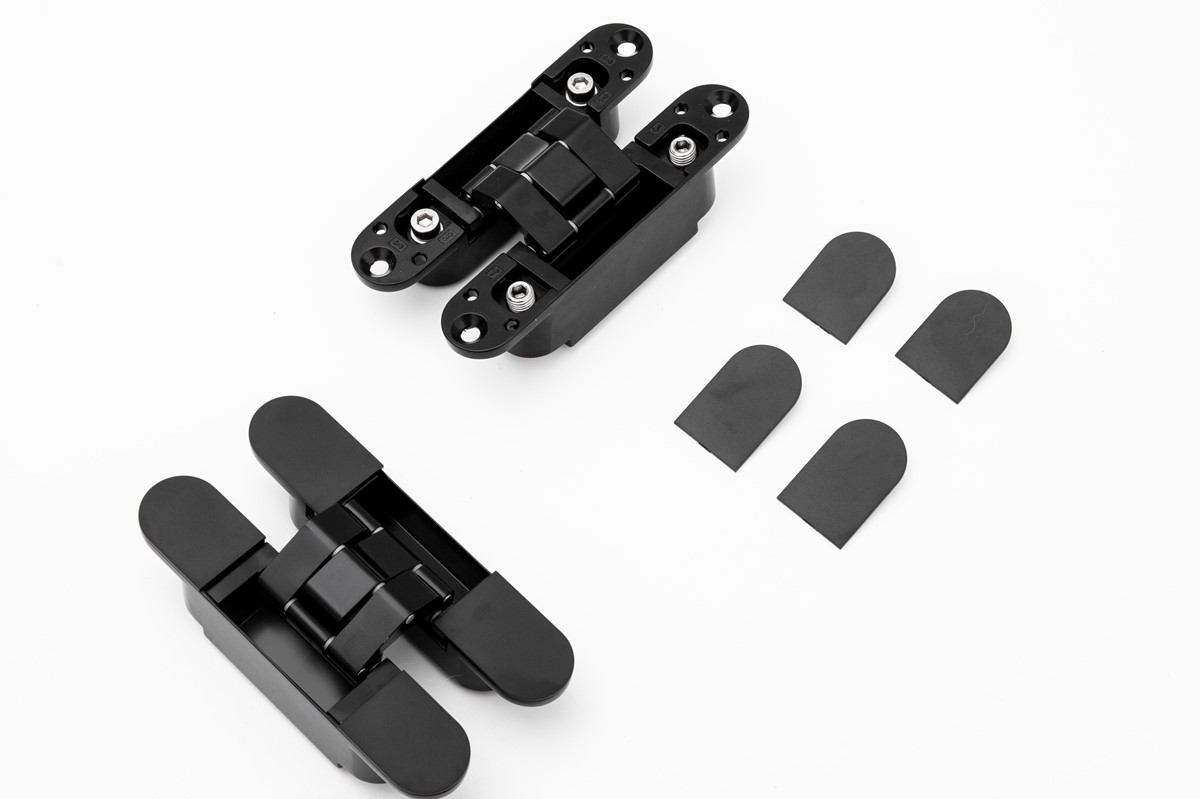

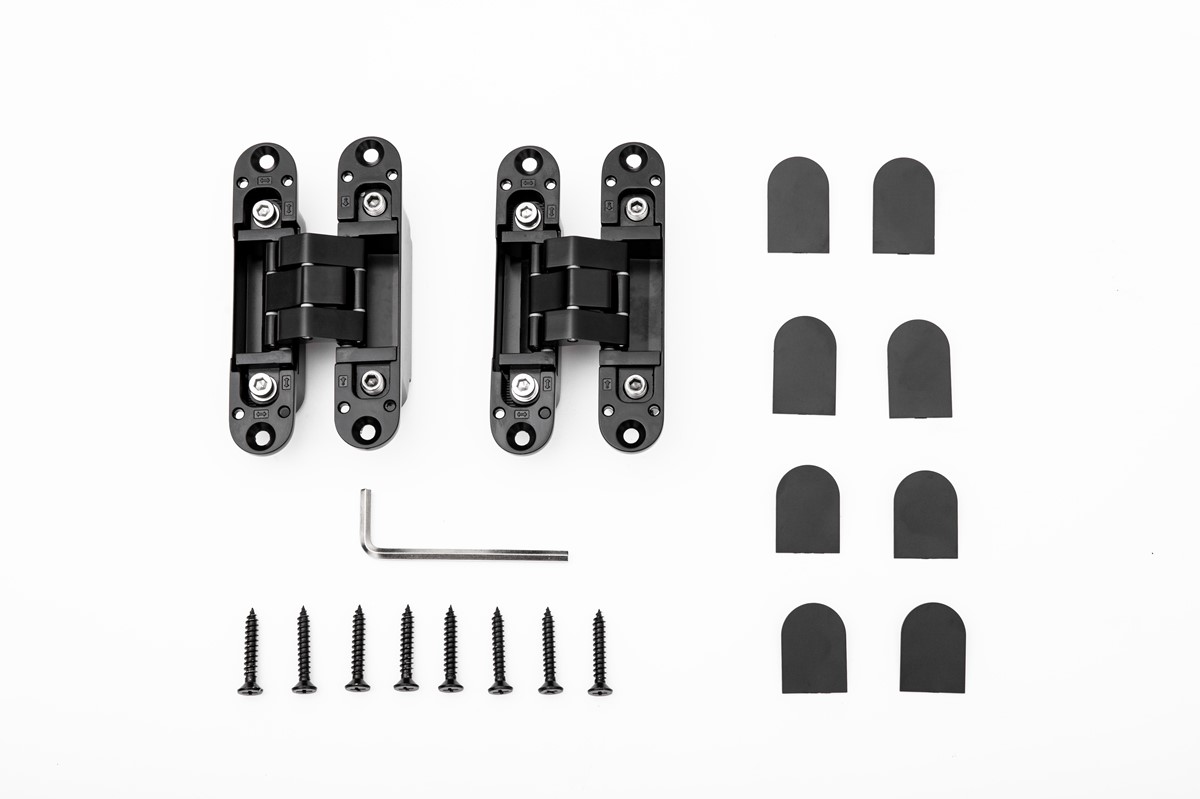

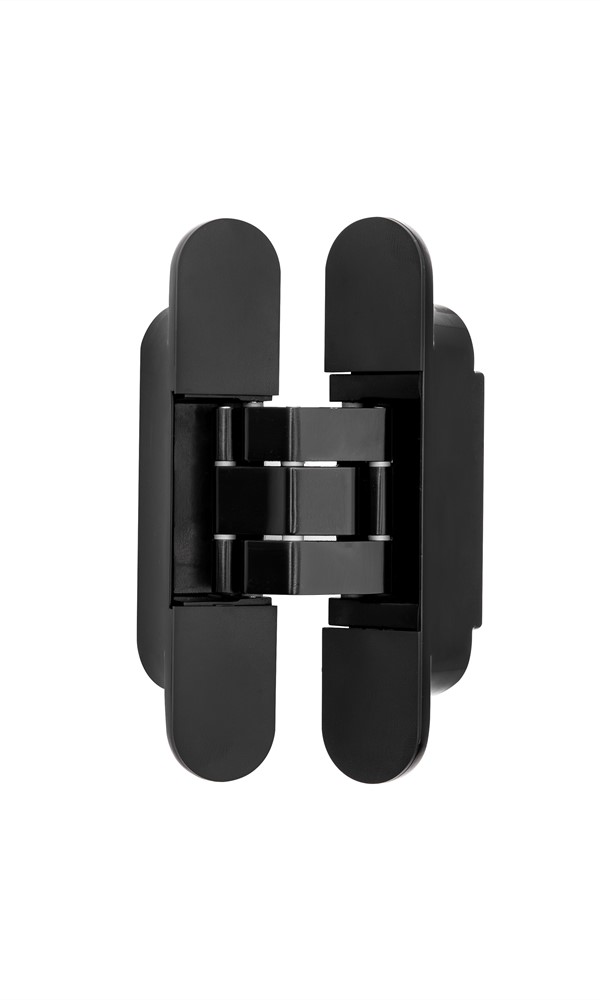

Product Display
