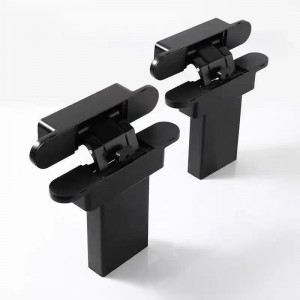

YH type hydraulic hinge
YH type hydraulic hinge
Short Description:
Model No：Integrated Concealed Hydraulic Hinge
Material： Zinc Alloy
Finish： Matt Black / Black Nickel / Silver
Application: Wooden door, Wooden alumimum door For flush door with rebate or without rebate

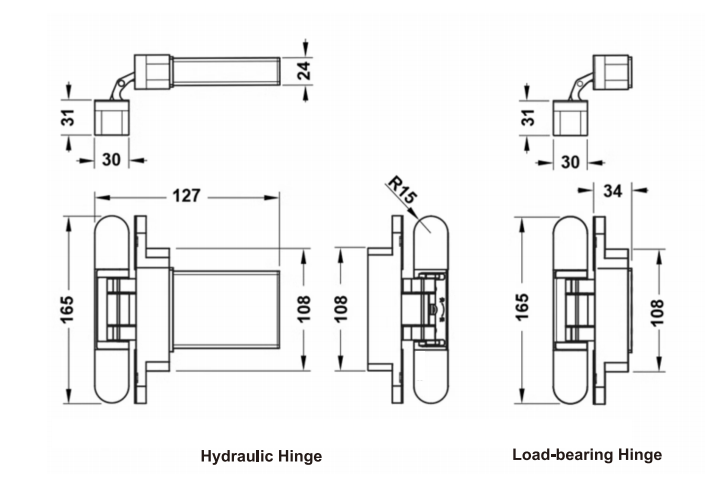

Product Size Type
Brand:llSDOO Product : Invisible door hydraulic concealed hinge
Maximum opening angle: 125 degrees Finish: black, black nickel, silver
Material: zinc alloy Applicable temperature: -10"C~45°C
Two-dimensional adjustable: left and right +2.5mm, up and down +2.5mm
Speed adjustment: door closing speed adjustable
Configuration
Hydraulic hinges, maximum load-bearing capacity 80KG
Door thickness: ≥42mm Door height: ≤2100mm Door width: ≤900mm
Hydraulic hinges + 1 Normal hinge, maximum load-bearing capacity 80KG
Door thickness: ≥42mm Door height: ≤2800mm Door width: ≤1000mm

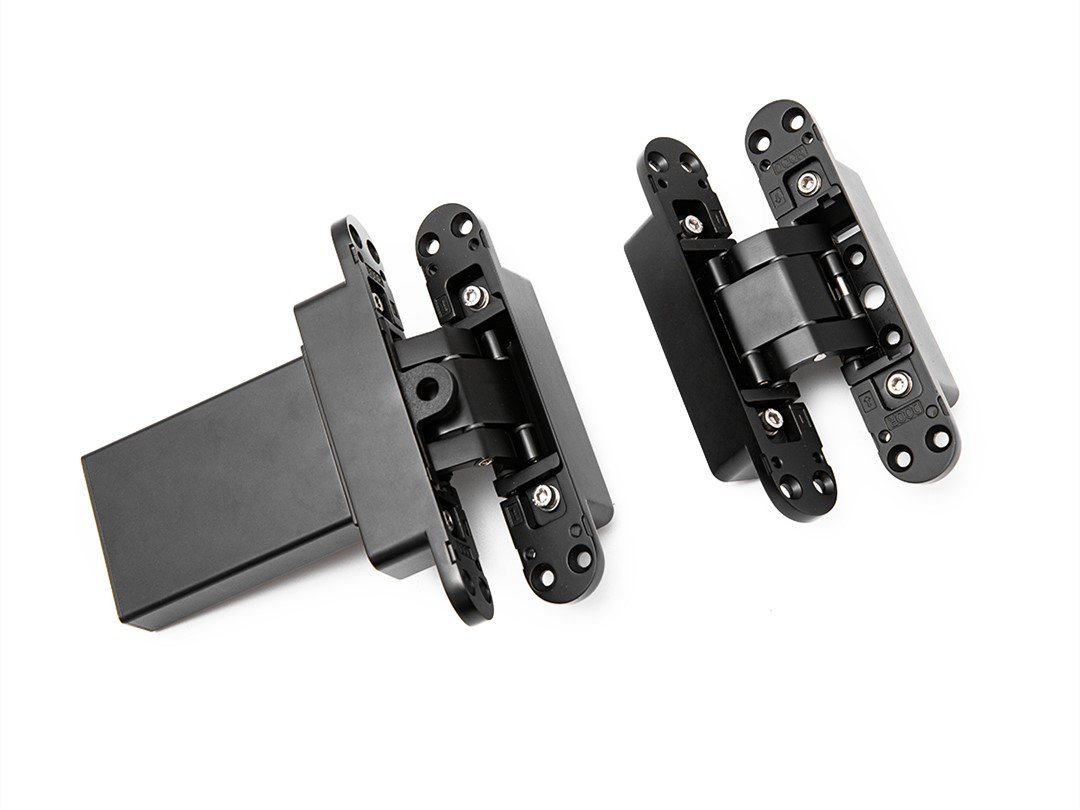

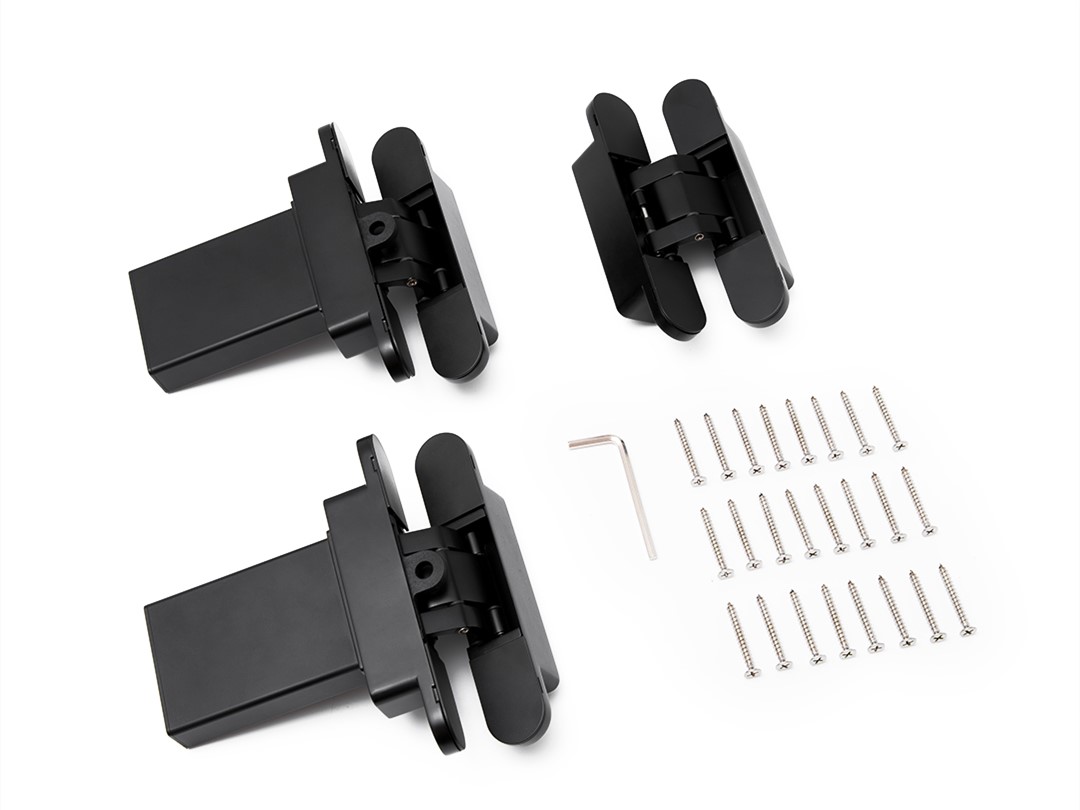

Product Display
