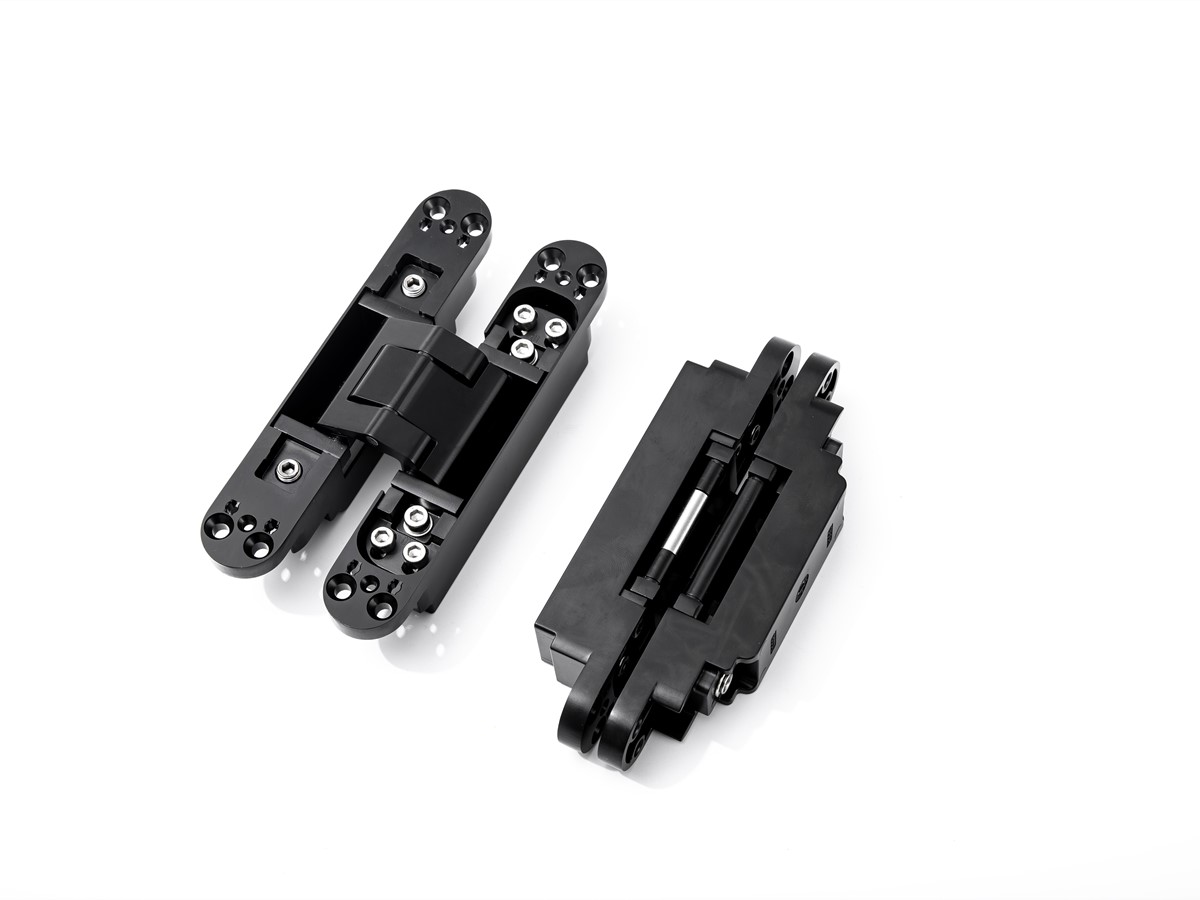

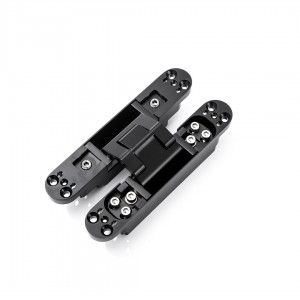

Door Hinge-YLS-077
Door Hinge-YLS-077
Short Description:
Model No： 077 Three-dimensional hinge
Material： Zinc Alloy
Finish： Matt Black / Pear Chrome / Satin Gold
Product Details Display
Material:Zinc alloy
Application: Wooden door, Wooden alumimum door For flush door with rebate or without rebate
Opening degree:180
Loading capacity:80kg/2pieces
Door thickness:38-60mm
Wdth of door:less than 900mm
Height of door: less than 2100mm
Adjustment
Horizontal:+4mm,-2mm
Vertical:土 3mm
Depth:土lmm
Product Display
Optional Function
Entrance Function - BJ Series
Including 2 pieces of handle, 2 pieces of rosette,2 pieces of YALE escutcheon
Privacy Function ( Option 1 )
Privacy Function-BW Series
Including 2 pieces of handle, 2 pieces of rosette,1 piece of privacy latch
Entrance Function - BJT Series
Including 2 pieces of handle, 2 pieces of rosette; Customers could choose different escutcheon according to the usage
Privacy Function ( Option 3 )
Privacy Function-BF Series
Including 2 pieces of handle, 2 pieces of rosette,2 pieces of escutcheon;1 piece of mortise lock,1 piece of cylinder
