AD6005
AD6005
Short Description:
Model NO: 3D hydraulic concealed hinge - AD6005
Size： 28*175
Material： Zinc Alloy & Aluminum
Finish： Matt Black / Matt White / Satin Black Nickel / Brushed Gold
Door Thickness：35-60mm
Product Details Display
Model No: AD6005
Main material: Zinc Alloy & Aluminum
Door thickness: 35-60mm

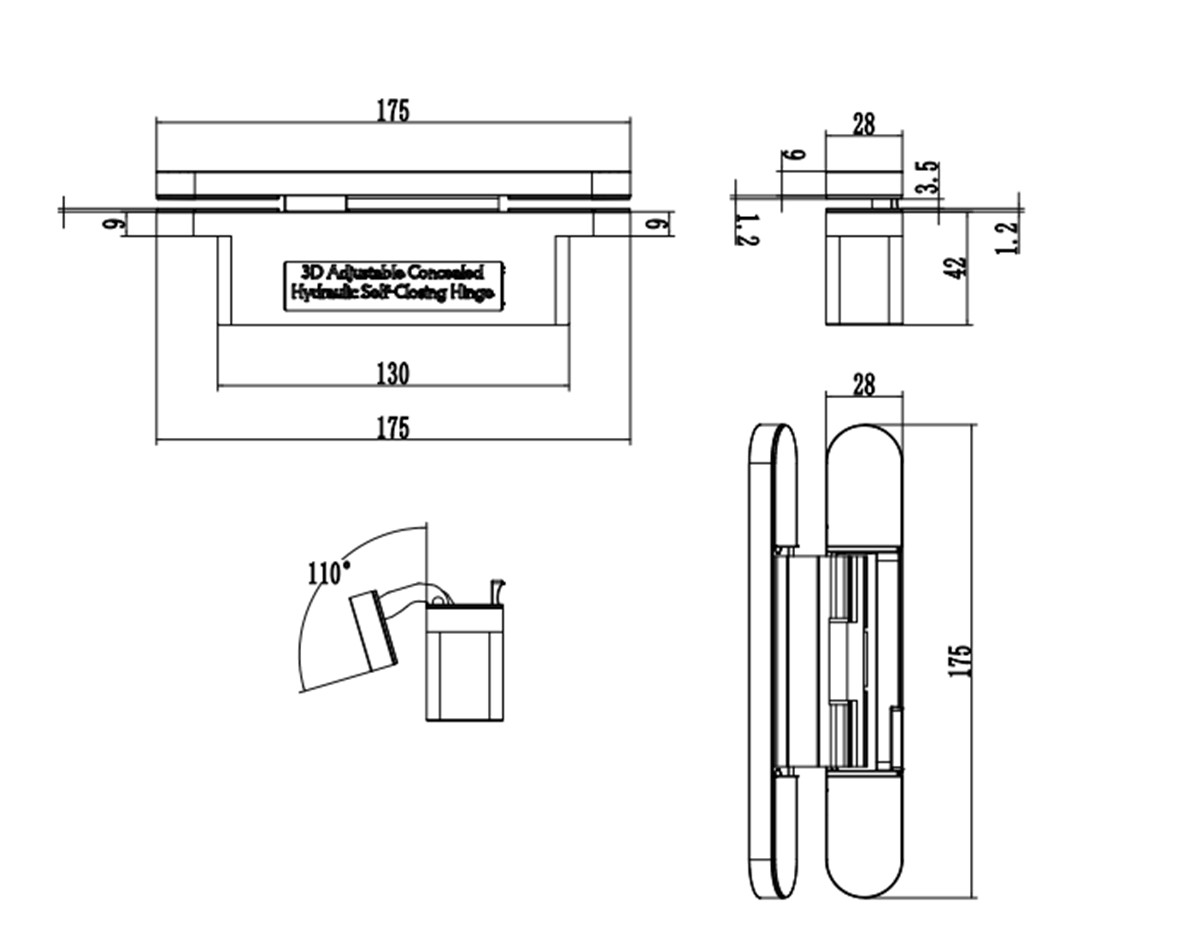

Dimension:
Main material: Zinc Alloy & Aluminum
Door thickness: 35-60mm
Dimension:

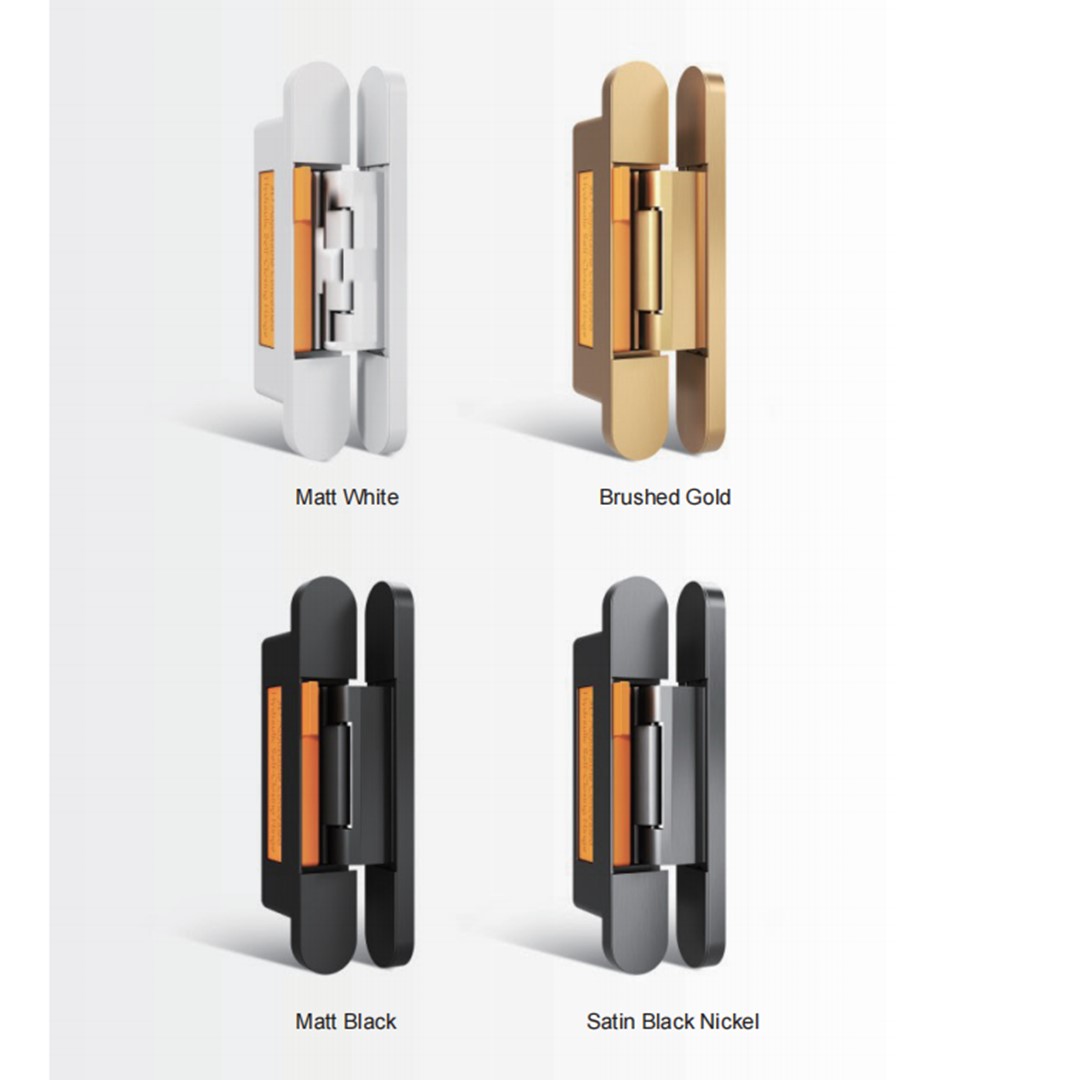

Product Finish
Product Functions
1.28mm ultra-narrow × 10mm super-slim profile
2.For 45mm doors with rebate, a 4mm door edge margin can be
maintained
3.Shallow door frame mortising prevents damage to internal aluminum frame structure, ensuring stronger door frame integrity
4.Fully concealed design; seamless integration via Mill installation
5.Hydraulic buffering with integrated damping mechanism
6.3D adjustable for precise and effortless alignment
7.Adjustable damping rate for full control over closing speed
8.110° opening angle with automatic, silent self-closing
9.Exceptional load-bearing capacity: 2 hinges support up to 70KG
